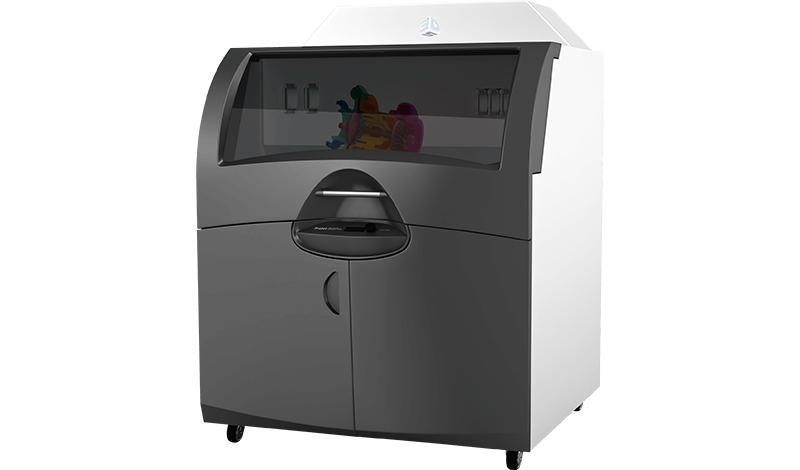

ProJet 860 Pro
Технические характеристики
Key Features
Maximum build envelope capacity: 500mm (W) x381mm (D) x 229 mm (H)
Full CMYK colour
Resolution 600 x 540 dpi
Подробное описание технических характеристик
Принтер
Разрешение
600 x 540 DPI
Цвет
Full CMYK
Pastel or vibrant color options
Yes
Number of Jets
1520
Number of Print Heads
5
Minimum Feature Size
0.02 inches (0.5 mm)
Layer Thickness
0.004 inches (0.1 mm)
Vertical Build Speed
0.2 – 0.6 in/hour (5 – 15 mm/hour); speed increases with volume of prototypes
Prototypes per Build*
96
Electrical
90-100V, 7.5A 110-120V, 5.5A 208-240V, 4.0A
Габариты (Ш x Г x В)
3D Printer Crated: 64 x 58 x 73 inches (163 x 147 x 185 cm)
3D Printer Uncrated: 47 x 46 x 68 inches (119 x 116 x 162 cm)
Noise
Building: 57 dB
Core Recovery: 66 dB
Vacuum (open): 86 dB
Fine Decoring: -
Вес
3D Printer Crated: 448 kg
3D Printer Uncrated: 363 kg
Automated Setup and Self Monitoring
Yes
Material Recycling
Yes
Automatic Build Platform Clearing
Yes
Part Cleaning
Accessory
Intuitive Control Panel
Yes
Integrated Materials
Yes
Input Data File Formats Supported
STL, VRML, PLY, 3DS, FBX, ZPR
Client Operating System
Windows® 7 & Vista®
Диапазон рабочей температуры
13-24 ºC
Диапазон допустимой относительной влажности
20-55 % - non-cond.
Certifications
CE, CSA
Расходные материалы
Build Materials
VisiJet PXL
